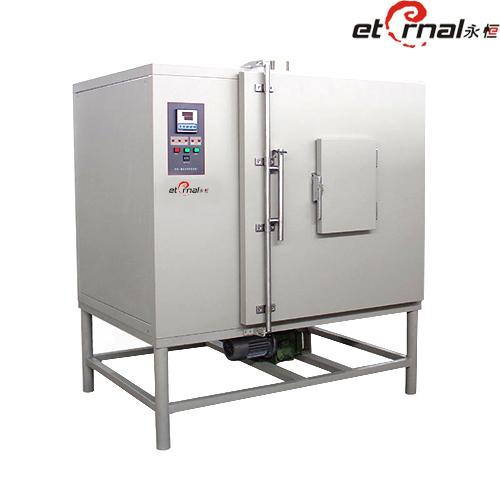

Environmental chambers used deck / Temperature Humidity Environmental Chamber
1. Application for Environmental Chamber :
Temperature chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity.
It is applied for quality inspection for all types of electronic products, electric appliance,and products from
communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace
industries.
2. Accessories for Environmental Chamber :
Inner door with operation hole (optional)
50mm or100mm Entrance hole for test wire, Dia.50mm or 100mm
Sample Shelves, two layers
RS232 or RS485 communication Interface
3. Features for Environmental Chamber :
1.Graceful appearance,circularly shaped body, surface treated with mist strips, and plane handle with no reaction.
Easy to operate, safe and reliable.
2. Rectangular doubleglassed watching window for the observation of the test production during the testing process.
The window is equipped with sweat proof electrical heating device that can prevent water steam from condensing
into droplets,and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and
automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the
lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the
whole series (R23,R404)
6.Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as
the set value and time.
7.The control unit has the functions of multiples segment program editing, and of quick or slope control of
temperature and humidity.
8.Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
