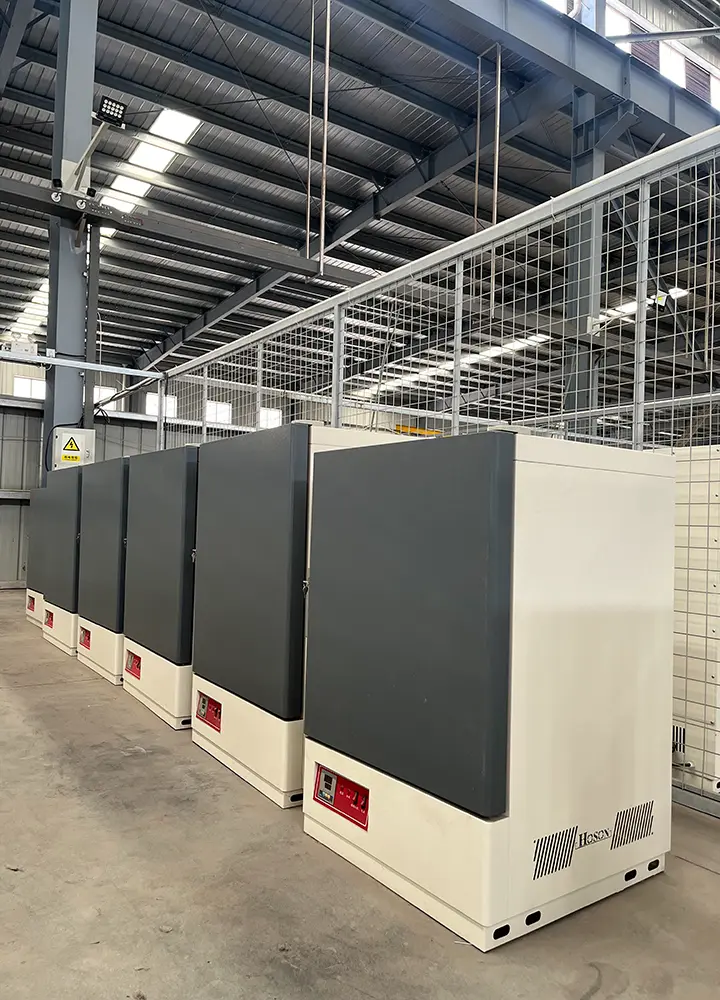

drying oven price in China
Temperature Range: R.T+10～300℃; Temperature Fluctuation: +-0.5℃; Temperature Uniformity: +-2.5%℃.
Application
This chamber is designed for drying, baking and heat treatment tests for non-flammable, non-explosive materials performed by Electronics, electrical, instrument, material, semiconductor manufacturing enterprises; it is particularly suitable for products such as LED, LCD, quartz crystal, capacitors, resistors and other products which demands constant temperature precision and high reliability drying and aging during the process of production.
Parameters
Temperature Range: R.T+10～300℃;
Temperature Fluctuation: +-0.5℃;
Temperature Uniformity: +-2.5%℃;
Temperature Rising Time: 70mins.
Details
- Strong wind circulation;
- Easy to set up man-machine dialogue mode, simultaneous display the set temperature and the measured temperature;
- Over-temperature protection improves reliability and safety;
- Convenient linear compensation function avoids the deviation between display temperature and actual temperature values;
- Unique assembly design result in a more reasonable case structure;
- The customized drying ovens are available for us.
- With strong technical support and product capacity, Chongqing Hoson Technology Co.,Ltd. can balance the drying oven price in China well.
Model CS101-1EBN CS101-2EBN CS101-3EBN Performance Temp. Range R.T+10℃～300℃ Temp.Fluctuations ±0.5℃ Temp. Uniformity ±2.5%℃ Specification Working Room Dimensions（mm） 400x450x400 500x550x500 600x650x600 Outer Dimensions Around（mm） 575x610x905 675x710X1025 775x810x1175 Content Volume 72L 137.5L 234L Power（KW） 1.5KW 2.5KW 3KW Power Supply 220V 50HZ Shelf 2 stainless steel shelves Disposition Structural Integral, the upper part is the working room, the lower part is the electronic control part, and the control panel is placed below.
The door in the width direction.Exterior Material Cold-rolled steel plate with electrostatic double-sided spraying. Internal Material High quality stainless steel plate Insulation 80 mm Fiberglass Door Seal High temperature resistant silicone rubber strip sealing Temp. Sensor Pt100 Platinum resistance Heater Nichrome electric heater Temp. Setting Press the △▽ button to set the number Temp. Display Measuring and setting temperatures can be digitally displayed with LED Safety Devices Heater short circuit, working room over-temperature protection, blower motor overload, etc., improve the safety of use Remarks The inner and outer dimensions are marked as：D×W×H； Recommended conditions for device use：Ambient temperature 5℃～＋30℃，Ambient humidity：≤85%RH；
The above data are measured under no-load conditions.
