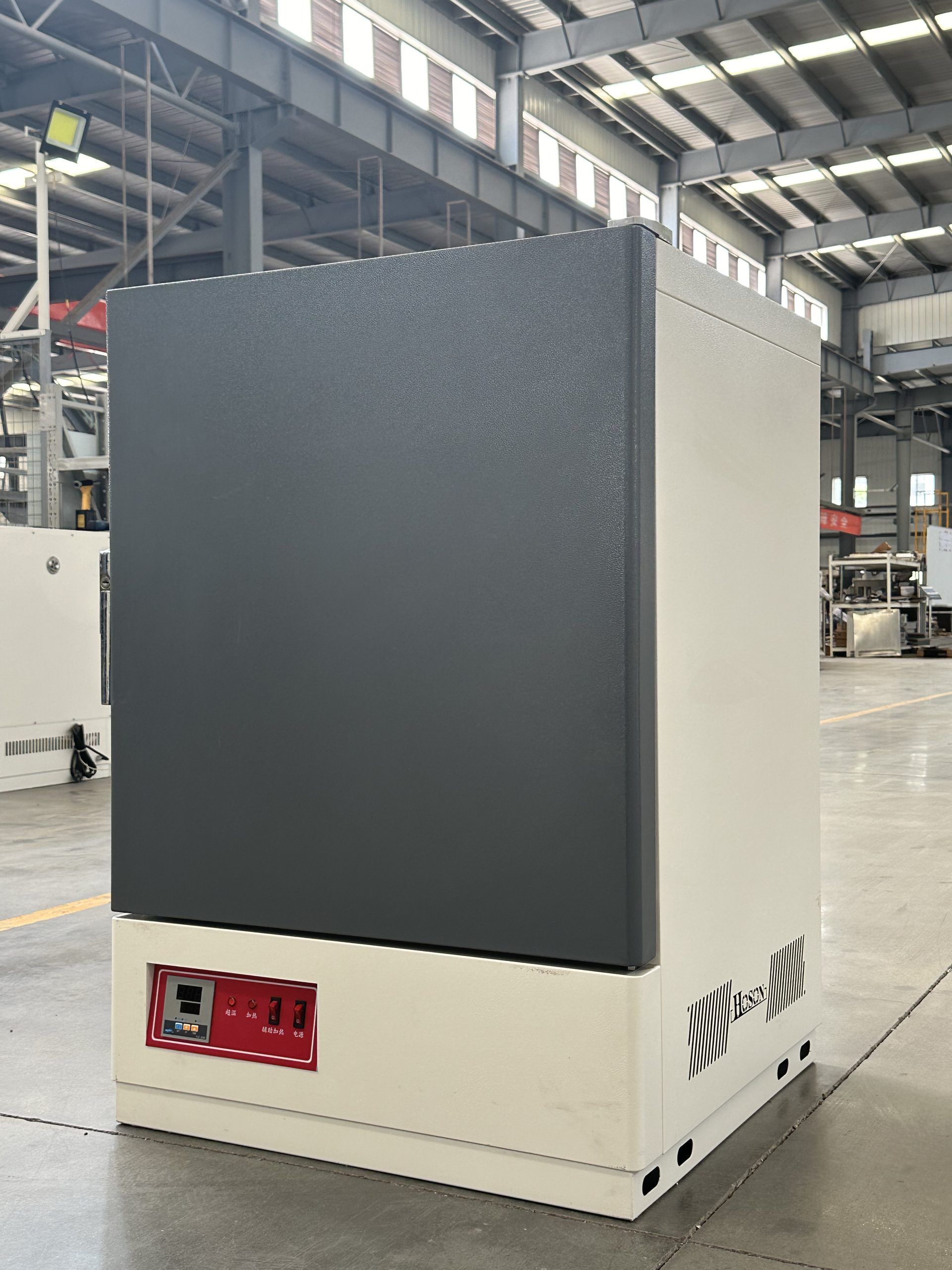

industrial drying ovens

Temperature Range: R.T+10～300℃; Temperature Fluctuation: +-0.5℃; Temperature Uniformity: +-2.5%℃; Temperature Rising Time: 70mins.

SKU: Eternal-CS101 Category: High Temperature Ovens

General Details
Technical Information
Order Inquiry

General Details

Application

This chamber is designed for drying, baking and heat treatment tests for non-flammable, non-explosive materials performed by Electronics, electrical, instrument, material, semiconductor manufacturing enterprises; it is particularly suitable for products such as LED, LCD, quartz crystal, capacitors, resistors and other products which demands constant temperature precision and high reliability drying and aging during the process of production.

Industrial drying ovenss details

Strong wind circulation;
Easy to set up man-machine dialogue mode, simultaneous display the set temperature and the measured temperature;
Over-temperature protection improves reliability and safety;
Convenient linear compensation function avoids the deviation between display temperature and actual temperature values;
Unique assembly design result in a more reasonable case structure;
The customized industrial paint drying ovens are available for us.
Chongqing Hoson Technology Co.,Ltd. provides industrial paint drying ovens, environmental test chambers etc.

Parameters

	Model	CS101-1EBN	CS101-2EBN	CS101-3EBN
Performance	Temp. Range	R.T+10℃～300℃
	Temp.Fluctuations	±0.5℃
	Temp. Uniformity	±2.5%℃
Specification	Working Room Dimensions（mm）	400x450x400	500x550x500	600x650x600
	Outer Dimensions Around（mm）	575x610x905	675x710X1025	775x810x1175
	Content Volume	72L	137.5L	234L
	Power（KW）	1.5KW	2.5KW	3KW
	Power Supply	220V 50HZ
	Shelf	2 stainless steel shelves
Disposition	Structural	Integral, the upper part is the working room, the lower part is the electronic control part, and the control panel is placed below. The door in the width direction.
	Exterior Material	Cold-rolled steel plate with electrostatic double-sided spraying.
	Internal Material	High quality stainless steel plate
	Insulation	80 mm Fiberglass
	Door Seal	High temperature resistant silicone rubber strip sealing
	Temp. Sensor	Pt100 Platinum resistance
	Heater	Nichrome electric heater
	Temp. Setting	Press the △▽ button to set the number
	Temp. Display	Measuring and setting temperatures can be digitally displayed with LED
	Safety Devices	Heater short circuit, working room over-temperature protection, blower motor overload, etc., improve the safety of use
	Remarks	The inner and outer dimensions are marked as：D×W×H； Recommended conditions for device use：Ambient temperature 5℃～＋30℃，Ambient humidity：≤85%RH； The above data are measured under no-load conditions.
