Programmable Low Temperature Test Chamber
Temp. Range：-70～+180℃; Internal space dimension(mm)：800 × 500 × 500; Variable volume: 200L;
General Details
- Programmable Low Temperature Test Chamber Widely used in cold tests and cryogenic storage of electrical products, materials, components and equipment in aerospace, aviation, information, electronics, instrumentation and other industries;
- Dual-stage compressor, superb cooling capacity
Highest temperature change ability like surface temperature change rate 20 ℃ / min, up to a predetermined maximum rate of temperature change test capability. - Evenly distributed temperature, perfect linear control;
- Use air volume & wind speed automatic adjustment, high-speed processing temperature controllers, electronic expansion valves and other advanced technologies, curb the surface temperature difference of the sample product, achieve a linear control accuracy;
温度速变
试验箱

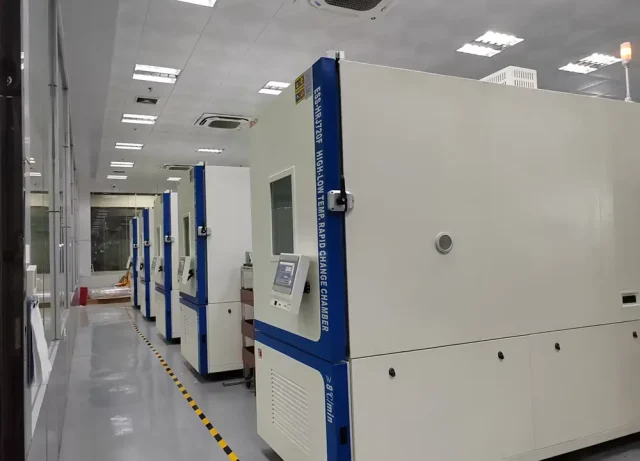

Temperature Rapid Change Test ChamberHS02560KWⅡF 0.6×0.6×0.7 Temp. range:-70℃～＋150℃.
Temp. change rate: 5℃/min（-55℃↔＋85℃,Overall average rate, with a load of 15Kg aluminum ingots.）HS02560KWⅢ 0.6×0.6×0.7 Temp. range:-70℃～＋150℃
Temp. change rate:10℃/min（-55℃↔＋85℃,Overall average rate, with a load of 12Kg aluminum ingots.）HS05060KW 0.7×0.8×0.9 Temp. range:-70℃～＋150℃
Temp. change rate:5℃/min（-40℃↔＋85℃,Overall average rate, with no load.）HS05060KWⅡ 0.7×0.8×0.9 Temp. range:-70℃～＋150℃
Temp. change rate:5℃/min（-55℃↔＋85℃,Overall average rate, with a load of 25Kg aluminum ingots.）HS05060KWⅢ 0.7×0.8×0.9 Temp. range:-70℃～＋150℃
Temp. change rate:10℃/min（-55℃↔＋85℃,Overall average rate, with a load of 25Kg aluminum ingots.）HS05060KWⅣ 0.7×0.8×0.9 Temp. range:-70℃～＋150℃，Condensing cylinders
Temp. change rate:15℃/min（-55℃↔＋85℃,Overall average rate, with a load of 25Kg aluminum ingots.）HS10160KW 0.9×1.15×1.1 Temp. range:-70℃～＋150℃
Temp. change rate:5℃/min（-40℃↔＋85℃,Overall average rate, with no load.）HS10160KWII 0.9×1.15×1.1 Temp. range:-70℃～＋150℃
Temp. change rate:5℃/min（-55℃↔＋85℃,Overall average rate, with no load.）HS10160KWⅢ 0.9×1.15×1.1 Temp. range:-70℃～＋150℃
Temp. change rate:10℃/min（-55℃↔＋85℃,Overall average rate, with a load of 70Kg aluminum ingots.）HS10160KWⅣ 0.9×1.15×1.1 Temp. range:-70℃～＋150℃，Condensing cylinders
Temp. change rate:15℃/min（-55℃↔＋85℃,Overall average rate, with a load of 70Kg aluminum ingots.）HS10260KWⅣ 1.2×1.4×1.2 Temp. range:-70℃～＋150℃
Temp. change rate:15℃/min(-55℃↔+85℃,Overall average rate, with a load of 100Kg aluminum ingots+1KW.）
Techical Info
Order Enquiry
Documents
Temperature and Humidity Test Chamber SDF Series
Temperature range: -70℃~+160℃; Humidity range: 30% -98% RH; Internal volume:100-1000L.
Thermal Shock Test Chamber
Temp. range: -60 ℃~+150 ℃ (+200 ℃) ; Low temperature range: -75 ℃~-10 ℃ ; Shock range: -40 ℃~80 ℃.
