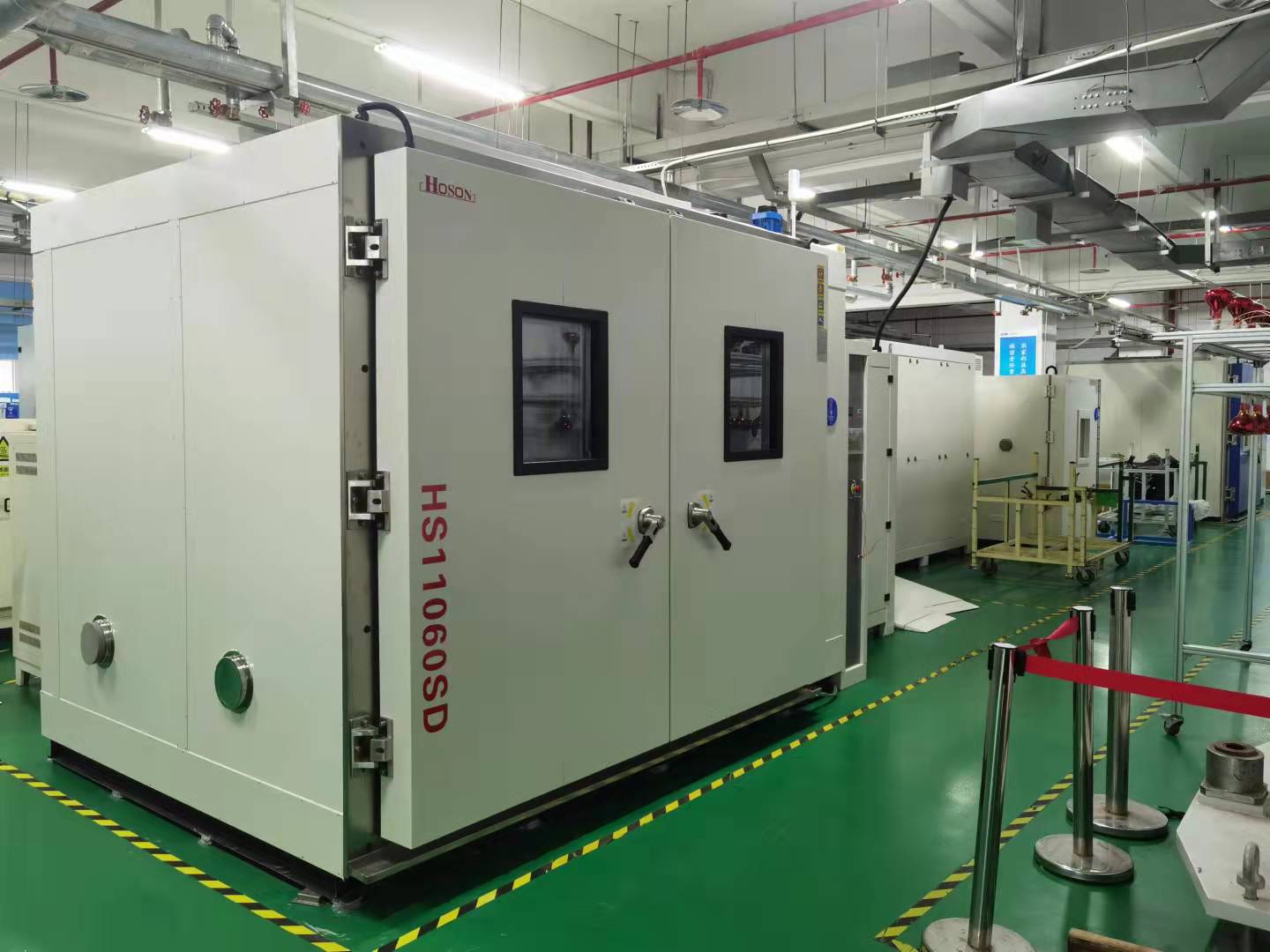

Walk-in High and Low Temperature (heat and humid) Test Chamber

Walk-in High and Low Temperature Test Chamber Application

Walk-in temperature and humidity test chambers are widely used to detect electronic equipment, IT communications, motor transport, industrial electrical, instrumentation, materials, energy, chemical and construction products for environmental adaptability, including heat, cold, resistance to dry and moisture.It can add artificial combined stress like light, rain, stream, snow, vibration, etc. for the imitation of the all-weather operating conditions of the finished product, for product development assessment and final design evaluation.Group products include assembled one piece housing plate and standard series, can meet the needs from a simple aging room to a sophisticated multi-purpose laboratory.

Walk-in High and Low Temperature Test Chamber Features

1. Self made frame type treasury storehouse board, high strength, good thermal insulation effect;

2. Use of electronic expansion valve control technology, energy-saving, quick control;

3. Capacitance humidity sensor control, easy maintenance, high reliability;

4. Independent patented intelligent control system;
Simply set the temperature and humidity conditions, the automatic control system will run at maximum power before reaching the set value, and at minimum power after reaching the set value. And it can respond quickly to the door switch and changes in heat load during the testing process in order to maintain a stable test environment.

5. Energy saving mode
There are 2 modes, the standard mode and energy-saving mode to control of the consumption ofelectricity. You can switch between modes in accordance with the test conditions. The patent-pending new refrigeration system can accurately control output, freezing capacity, so as to achieve a significant energy saving effect.

6. Automatic backup and continue to run function
In case a part of the test chamber fails, the remaining machines will continue to run without stopping the test. If the humidifier fails, the system will be switched to temperature control operation mode.

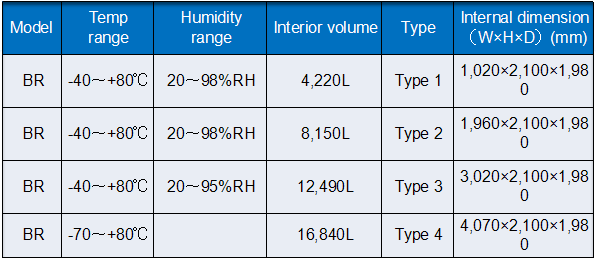

Walk-in High and Low Temperature Test Chamber Parameters

A variety of internal volumes and temperature ranges for you to choose from, and customization is also supported.

Advantages

1. 24 years testing equipment manufacturer.
   2. Low wholesale price.
   3. Small MOQ is available.
   4. One-stop testing solution provider.
   5. ISO9001:2015/ISO14001:2015 certificated factory.

Our Services

1. 12 months warranty.
   2. 24-hour online service.
   3. Product pictures could be offered before delivery.
   4. Products performance will be tested before shipping.
   5. Permanent technical support.

Packing & Delivery

Plastic film entwined, then put into a carton, which can meet the export standard.
